Float-A-Shaft® 2 to 1 Ratio Right Angle Gearboxes with Low Torque Journal Bearing
The Float-A-Shaft® 2 to 1 low torque right angle gearbox offers maximum torques up to 720 in-lbs (81.4 Nm) depending on input RPMs. Models available with standard mounts and flat mounts.
- Slides along shafting limited only by keyway length
- Precision finish on mating surfaces for tight metal-to-metal assembly
- Case forming lubricant reservoir
- Races are keyed to shaft for simultaneous
Order Now
Order Float-A-Shaft® 2:1 Low Torque
Part Number
0304-0000
0303-0000
0308-0000
0307-0000
0312-0000
“A” Bore Size
1/2 in
1/2 in
1/2 in
1/2 in
1/2 in
“B” Bore Size
3/4 in
3/4 in
1 in
1 in
1 1/4 in
Rotation
RH
LH
RH
LH
RH
A Bore Keyway
1/8 x 1/16 in
1/8 x 1/16 in
1/8 x 1/16 in
1/8 x 1/16 in
1/8 x 1/16 in
B Bore Keyway
3/16 x 3/32 in
3/16 x 3/32 in
1/4 x 1/8 in
1/4 x 1/8 in
1/4 x 1/8 in
Max. Input Torque
800 in-lb at 70 RPM
800 in-lb at 70 RPM
800 in-lb at 70 RPM
800 in-lb at 70 RPM
800 in-lb at 70 RPM
Model Type
U.S. Imperial
U.S. Imperial
U.S. Imperial
U.S. Imperial
U.S. Imperial
Bearing Type
Low Torque Journal
Low Torque Journal
Low Torque Journal
Low Torque Journal
Low Torque Journal
Mounting Style
Standard Mount
Standard Mount
Standard Mount
Standard Mount
Standard Mount
Weight
3.50 lbs
3.50 lbs
3.50 lbs
3.50 lbs
3.50 lbs
Price
$343.44
USD
USD
$343.44
USD
USD
$343.44
USD
USD
$343.44
USD
USD
$343.44
USD
USD
Features & Ordering
Download the Float-a-Shaft® Brochure for full details on features
Float-a-Shaft: Standard 2:1 Low Torque Features
Specifications
Float-a-Shaft: Standard 2:1 Low Torque Specs
Dimensions

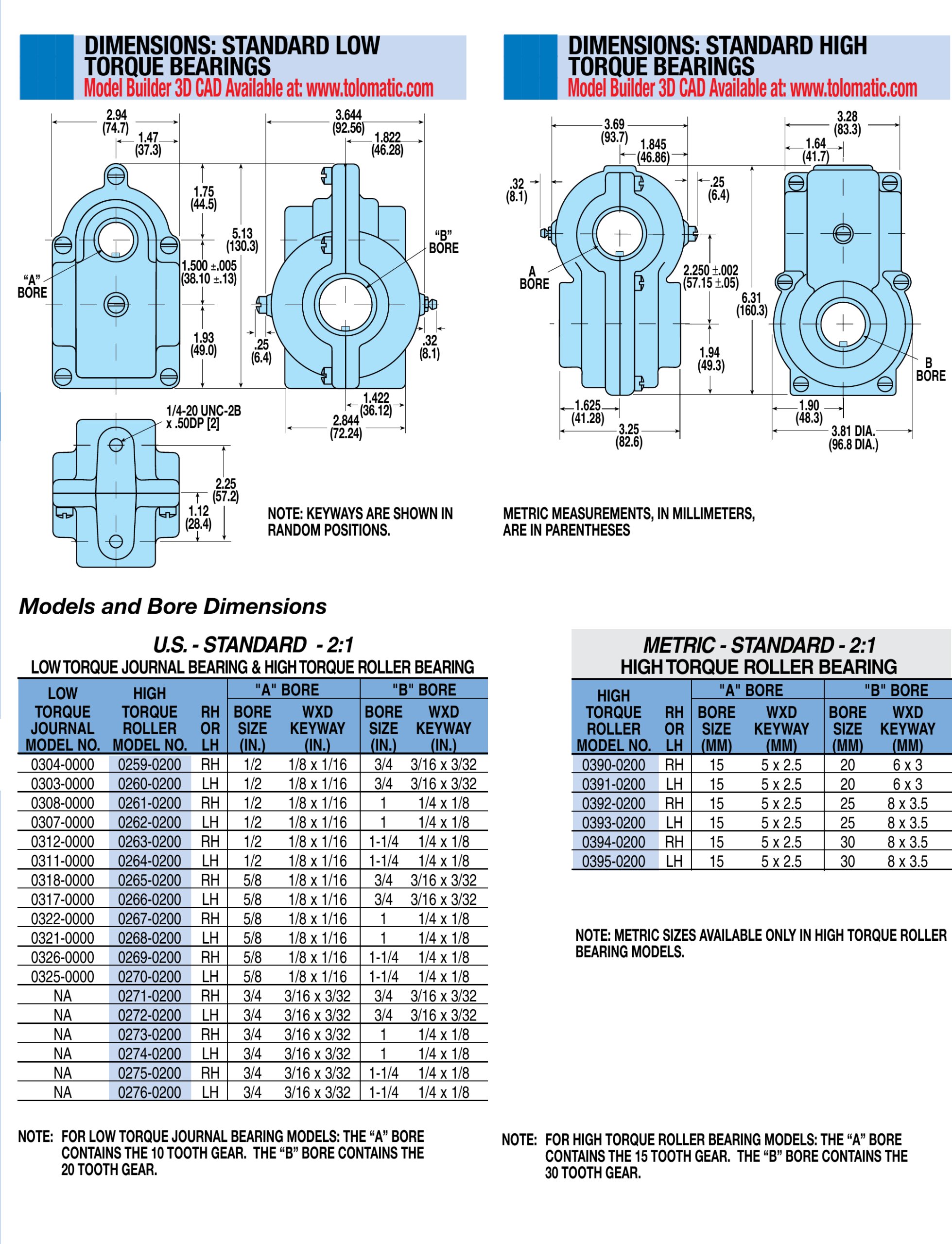

Float-a-Shaft: Standard 2:1 Low Torque Dimensions
Float-a-Shaft: Standard 2:1 Low Torque Flat Base Dimensions
